ALIS Hardware Description

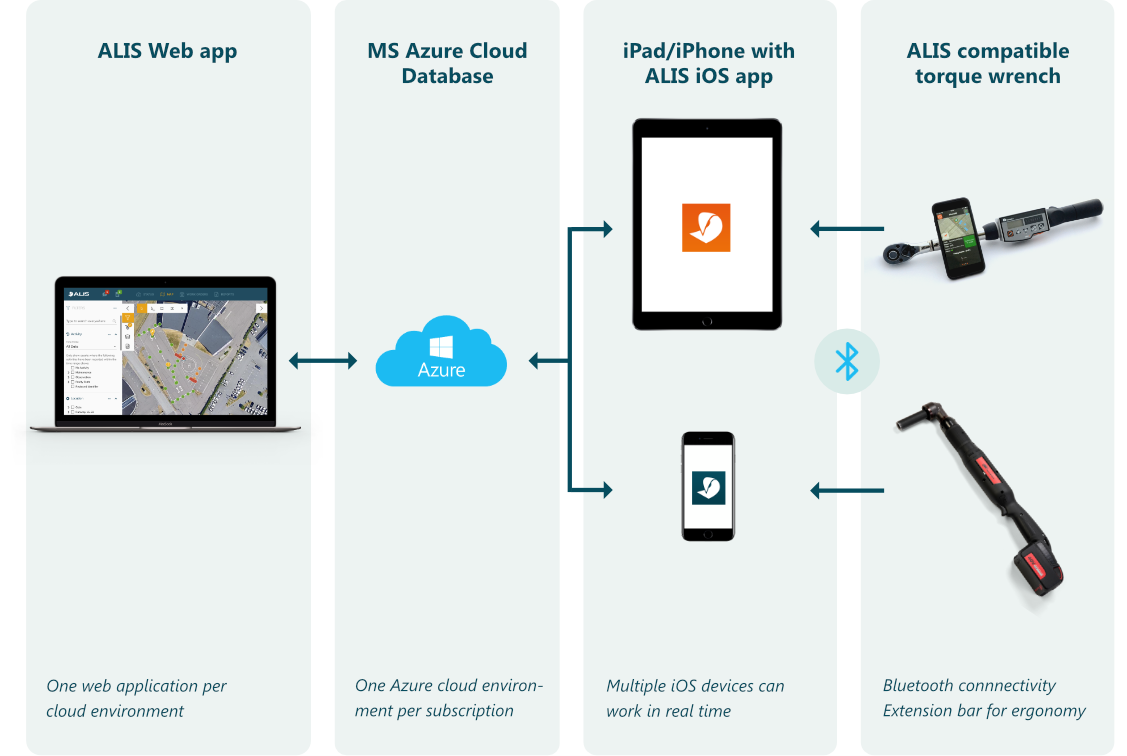

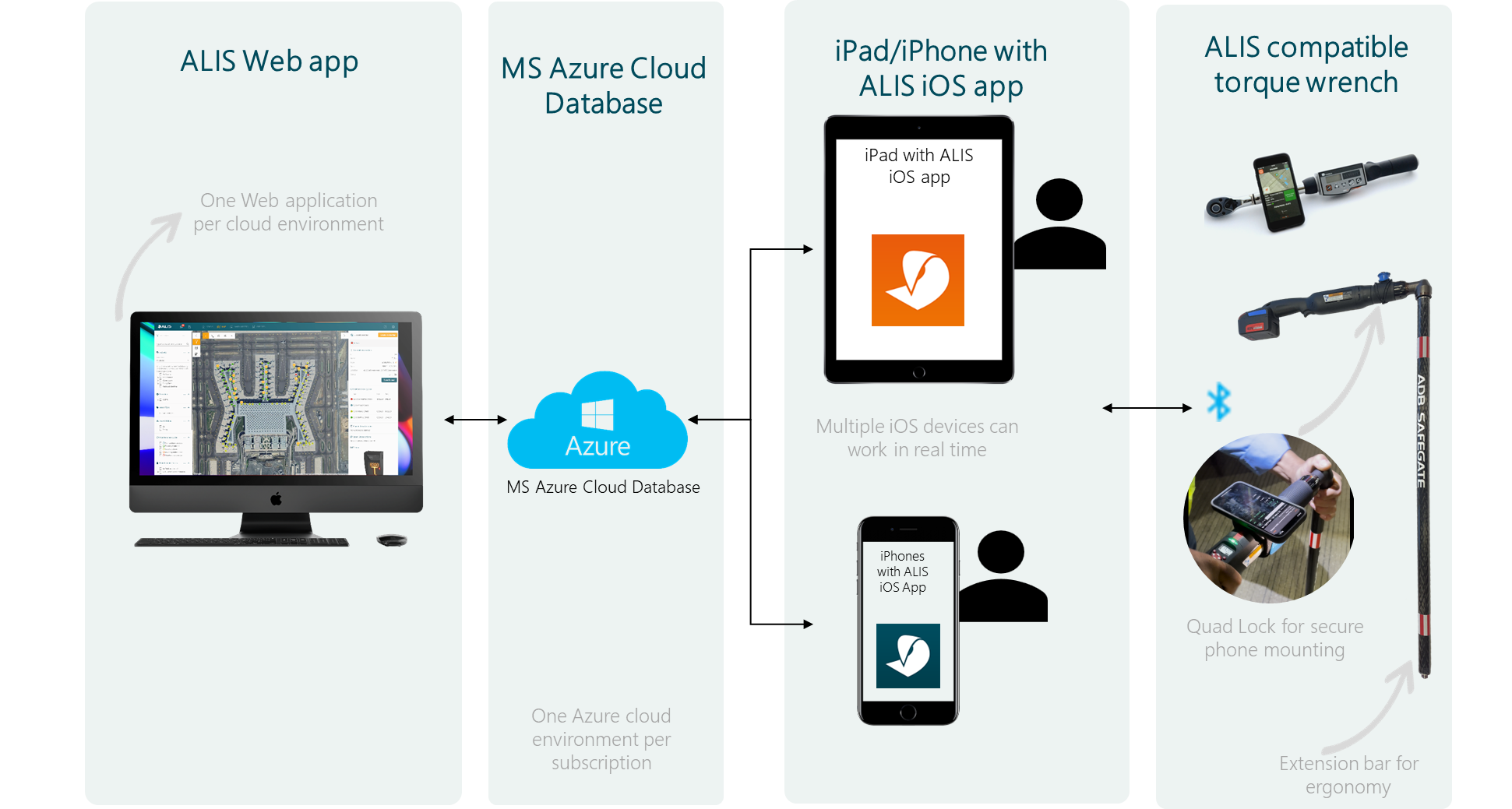

The ALIS maintenance service package uses a cloud database which is hosted by Microsoft Azure Servers and are under the direct control of ADB SAFEGATE bvba. We do not use on-premise servers.

The ALIS webapplication can be accessed by any modern desktop-based browser with an active internet connection able to access the instance (ie:  https://IATA.adbsg-alis.com)

The optional mobile devices used to retrieve and register data in the field are Apple iPads and iPhones.

iOS Devices for ALIS app

Using the mobile ALIS apps, technicians will be able to capture more accurate data in the field and create real proof points based on them.

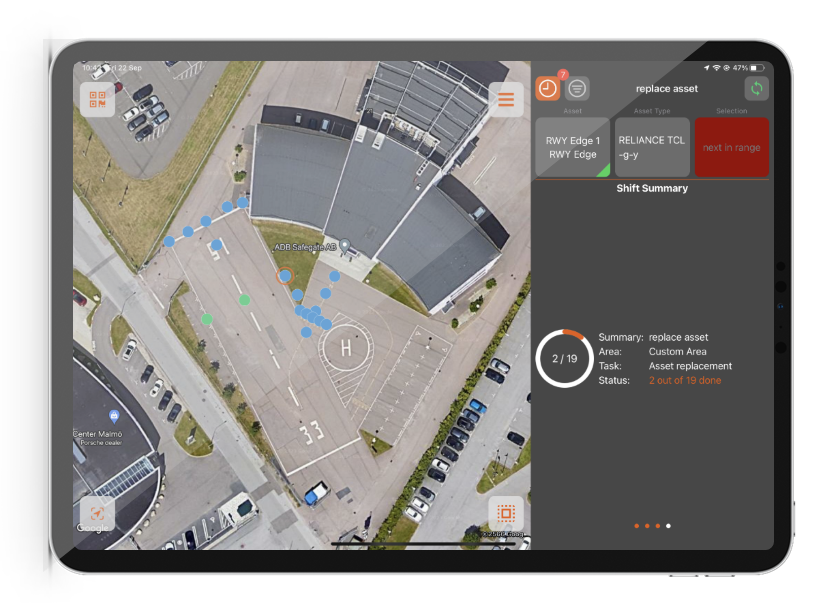

Apple iPad [Pre-programmed and accessories]

Options:

  • Apple iPad Pro [Pre-programmed and accessories]

  • Apple iPad Air [Pre-programmed and accessories]

Description:

The iPad – The Big screen on-site where it is easy to report, understand, register or manage mainteance. It runs the ALIS Team application and is connected with a SIM – Cellular data card to the cloud. The iPad is protected by a military grade case to be shock proof to have a industrial companion. Keep your iPad powered in the car by use of the car charger.

The iPad can use its built in location (through GPS and cellular data) to provide up to 2,5 m accurcate location which enables the auto-selection function for identification of assets on-site. If no 4g or 5g cellular is availabe an optional GNSS location device can be paired to the mobile device to allow for 2,5m accuracy.

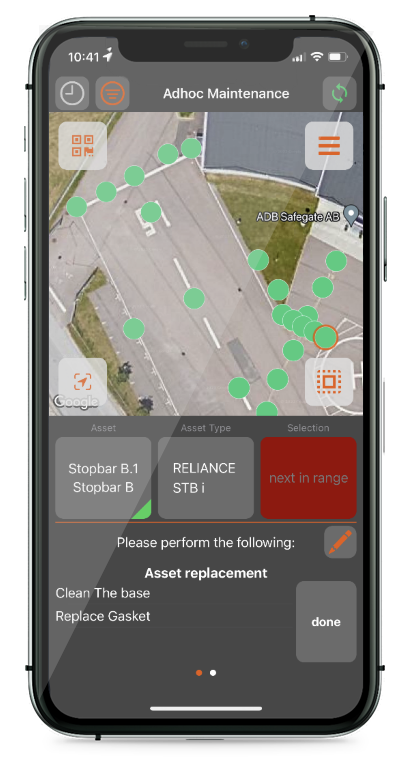

Apple iPhone [Pre-programmed and accessories]

Options:

  • Apple iPhone [Pre-programmed and accessories]

  • Apple iPhone SE [Pre-programmed and accessories]

Description:

The iPhone -  The device to use when you really need to go hands-on for the job.
It runs the ALIS Personal application which can connect directly to the cloud. There is a Quadlock case around the iPhone to make it shockproof and easily mountable onto the AirTorque Wrench. The iPhones can be charged with the cable or for the iPhone 8’s and up  you can use the wireless charging mat’s.

The iPhone can use its built in location (through GPS and cellular data) to provide up to 2,5 m accurcate location which enables the auto-selection function for identification of assets on-site. If no 4g or 5g cellular is availabe an optional GNSS location device can be paired to the mobile device to allow for 2,5m accuracy.

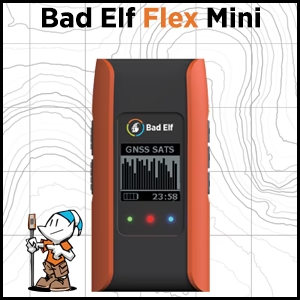

GPS correction device (Optional*)

Description:

The GNSS -  Location device – Bad Elf Flex® Mini Standard

It provides the iPhones - with up to 1.5m accurate location. Charges from the back through a Micro-USB cable. The Bad-Elf connects with Bluetooth To your iPhone/iPad – and takes over the location service of the device. Long press the power button for Power on/off.

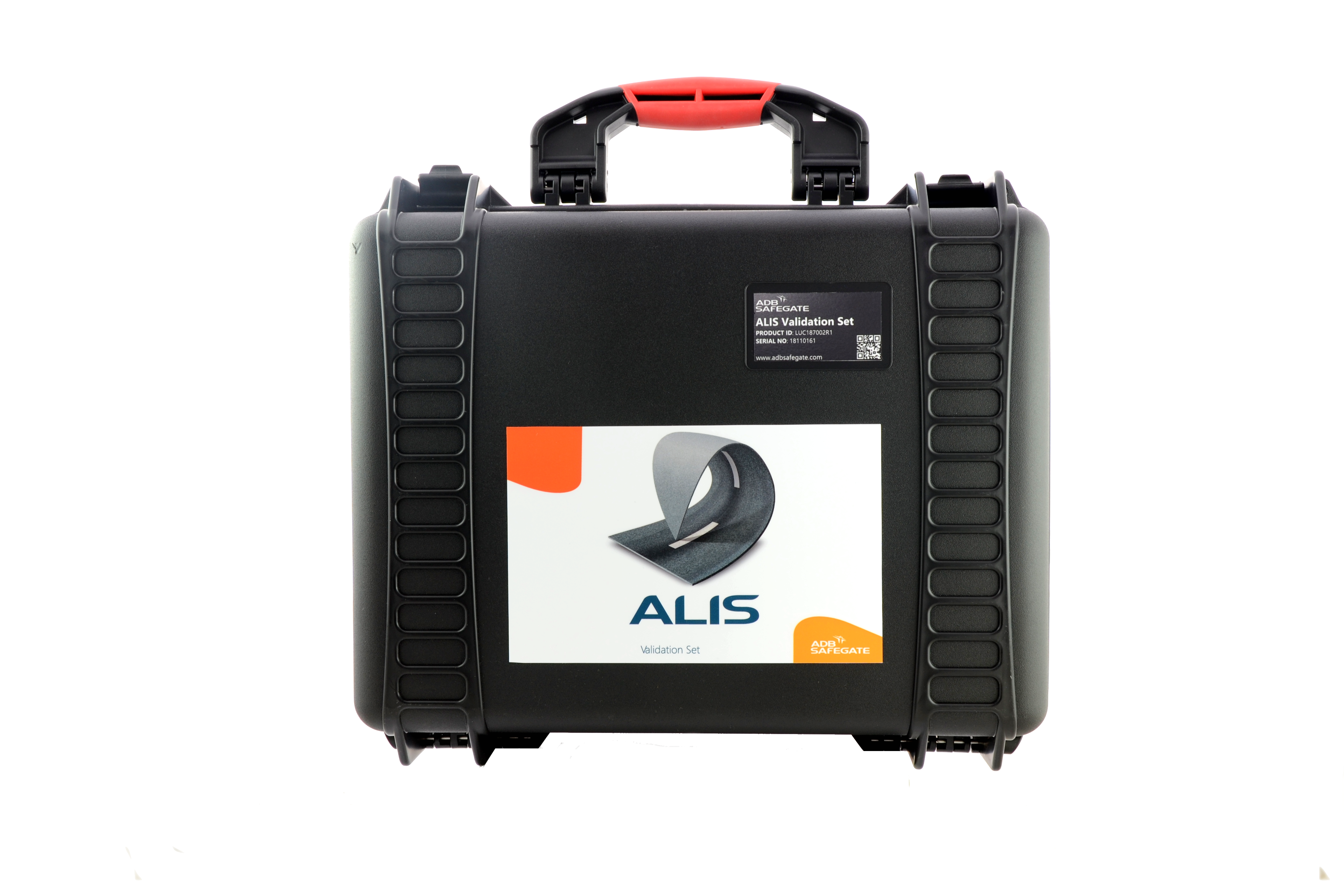

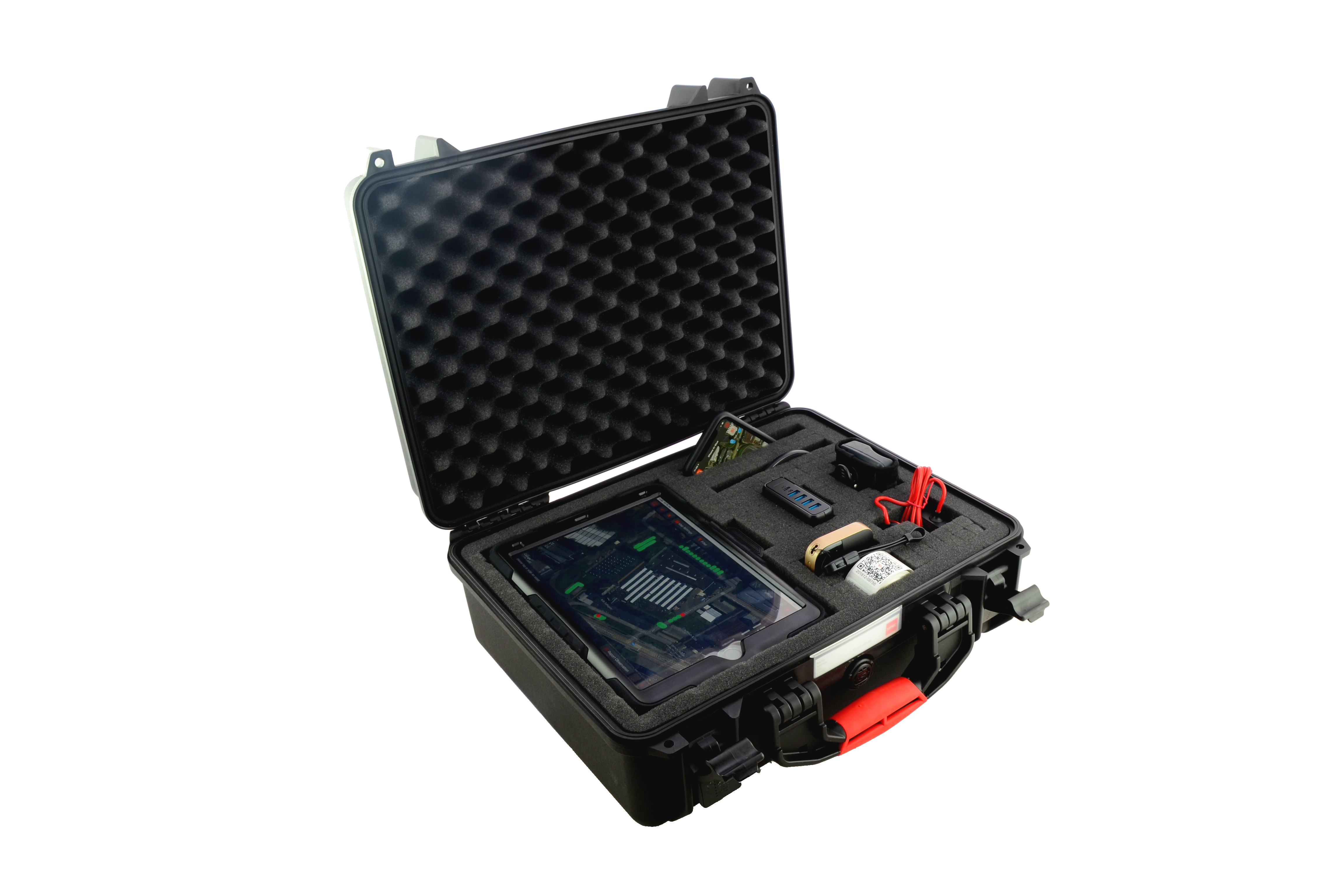

Customized Validation Set Carrying case

Description:

A Validation case contains all of the hardware needed to be able to perform accurate location based maintenance registration and is fitted in a custom made shock and waterproof case. The validation case for 1 is foreseen to have 1 ALIS personal device (iPhone) and 1 iPad. Where the Validation case for 2 is a set for 2 technicians (or 1 spare set).

Includes:

  • QR codes roll

  • Chargers

  • Other components in the picture are not included

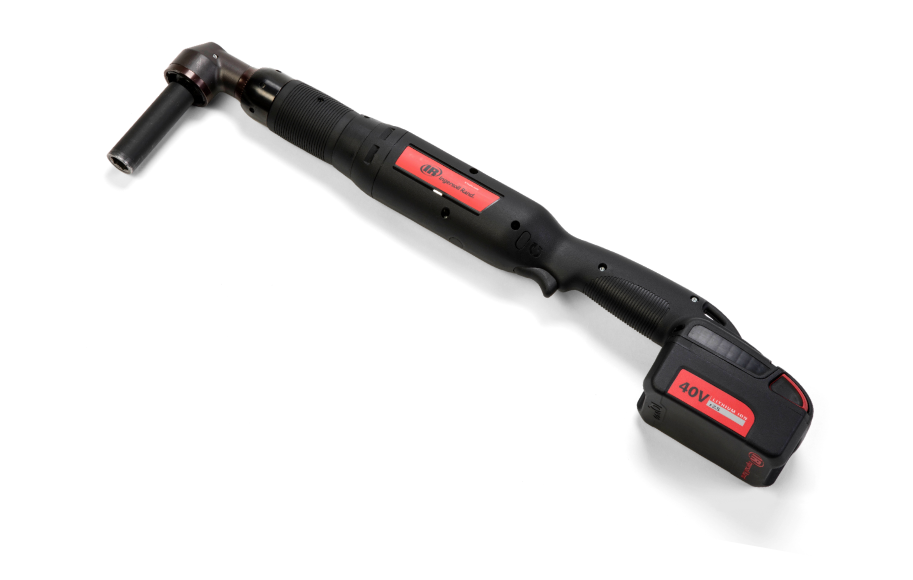

ALIS compatible torque wrench

Options:

  • Ingersoll Rand QX 80Nm (non-ETS)

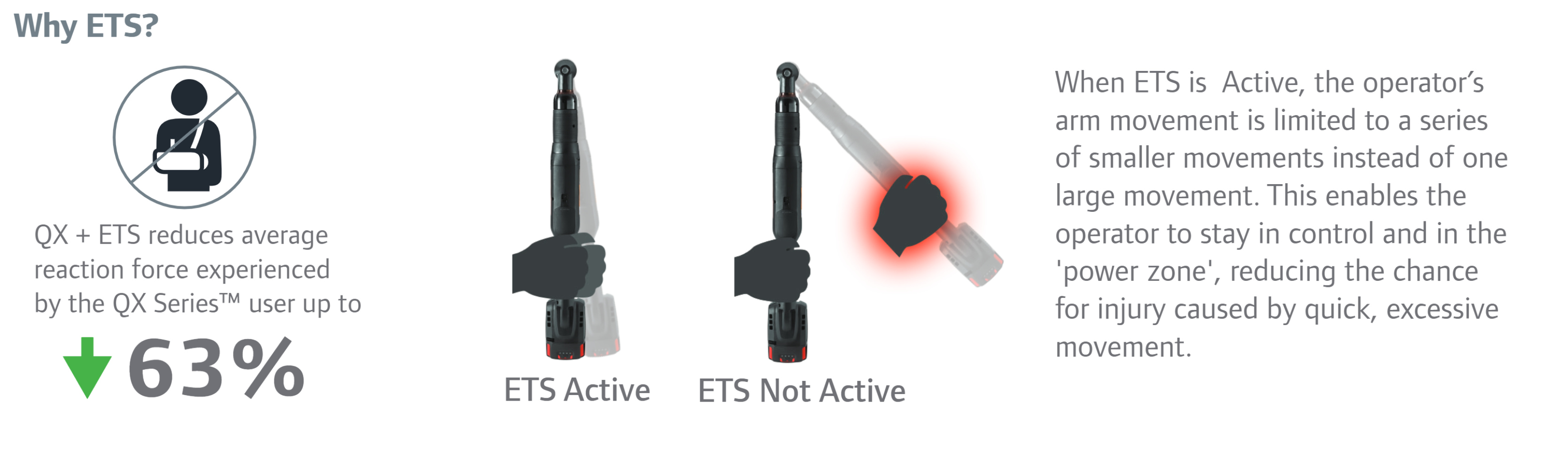

  • Ingersoll Rand QX 80Nm ETS (Ergonomic mode - The "E" includes Ergonomic Tightening System (ETS), which downshifts the wrench to take stress off the person doing the work.)

Description:

  • 1/2" head

  • Bluetooth

  • Smart Electric Assembly tool for bolt torqueing and inspection

The innovative QX Series is a revolutionary step for your airfield, one that shows how a smarter tool can improve process control, operator comfort and data communication in a single package while increasing productivity, lowering costs and ensuring a high-quality installation of your airfield lighting.

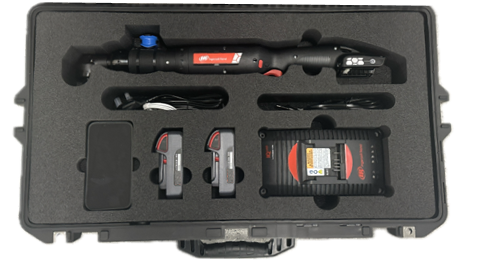

Including:

  • iPhone (SE) Mount

  • 2x Ingersoll-Rand accu 40V

  • Ingersoll-Rand charger 40V

  • Customized Ingersoll Carrying case ( + QR codes + Chargers)

Torque wrench and iPhone:

The iPhone can come off the wrench and can also be used as a portable user-interface to register maintenance while working, so that the user has all of the information close by and has the comfort of having his both hands to work.  The iPhone is easily available when tucked away without being hindered by having to carry the iPad.

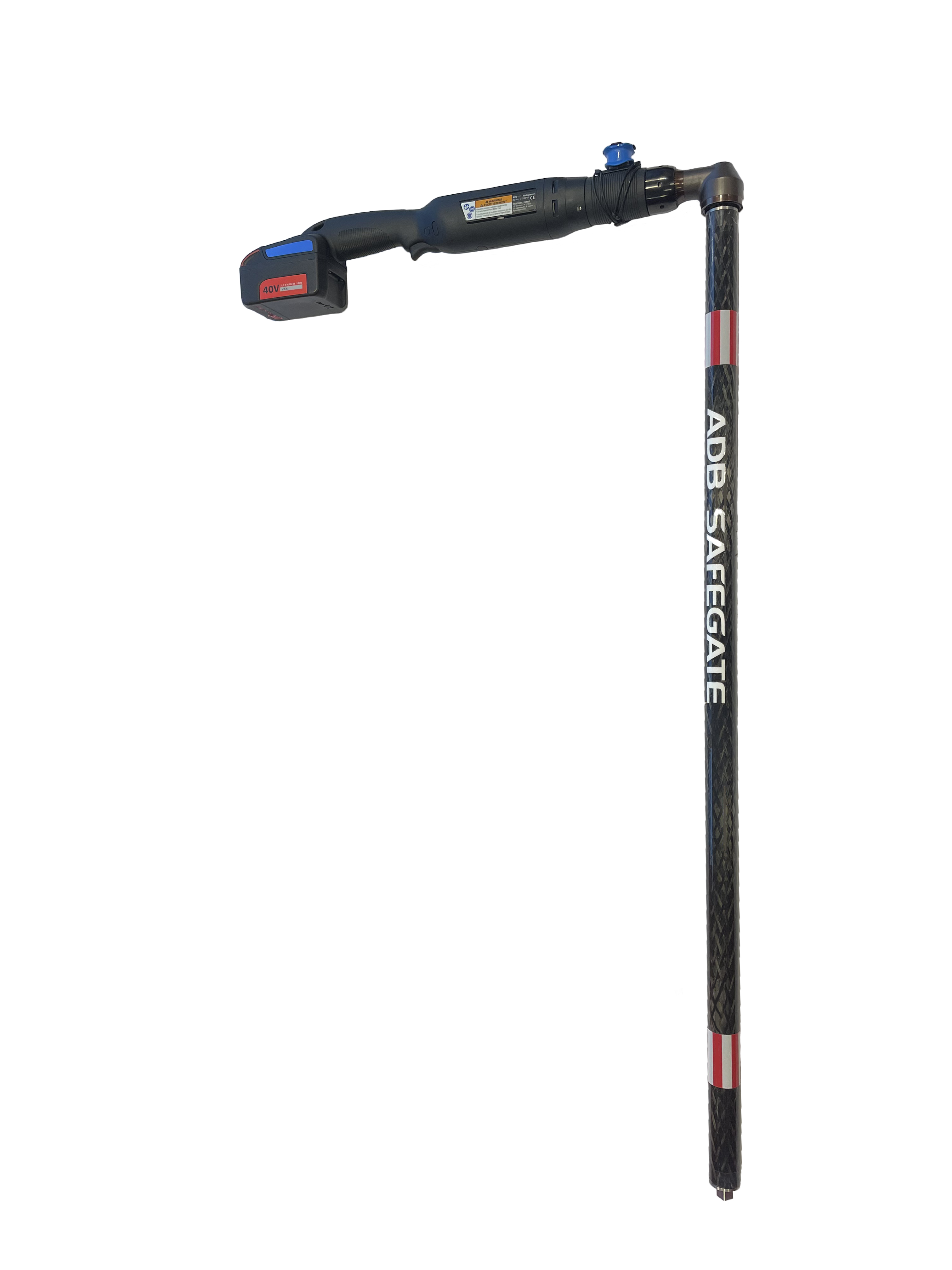

The carbon fibre extension bar

Can be used on Tohnichi and Ingersoll rand wrench

Length: 1 m

200Nm graded with ½” socket connection top and bottom.
